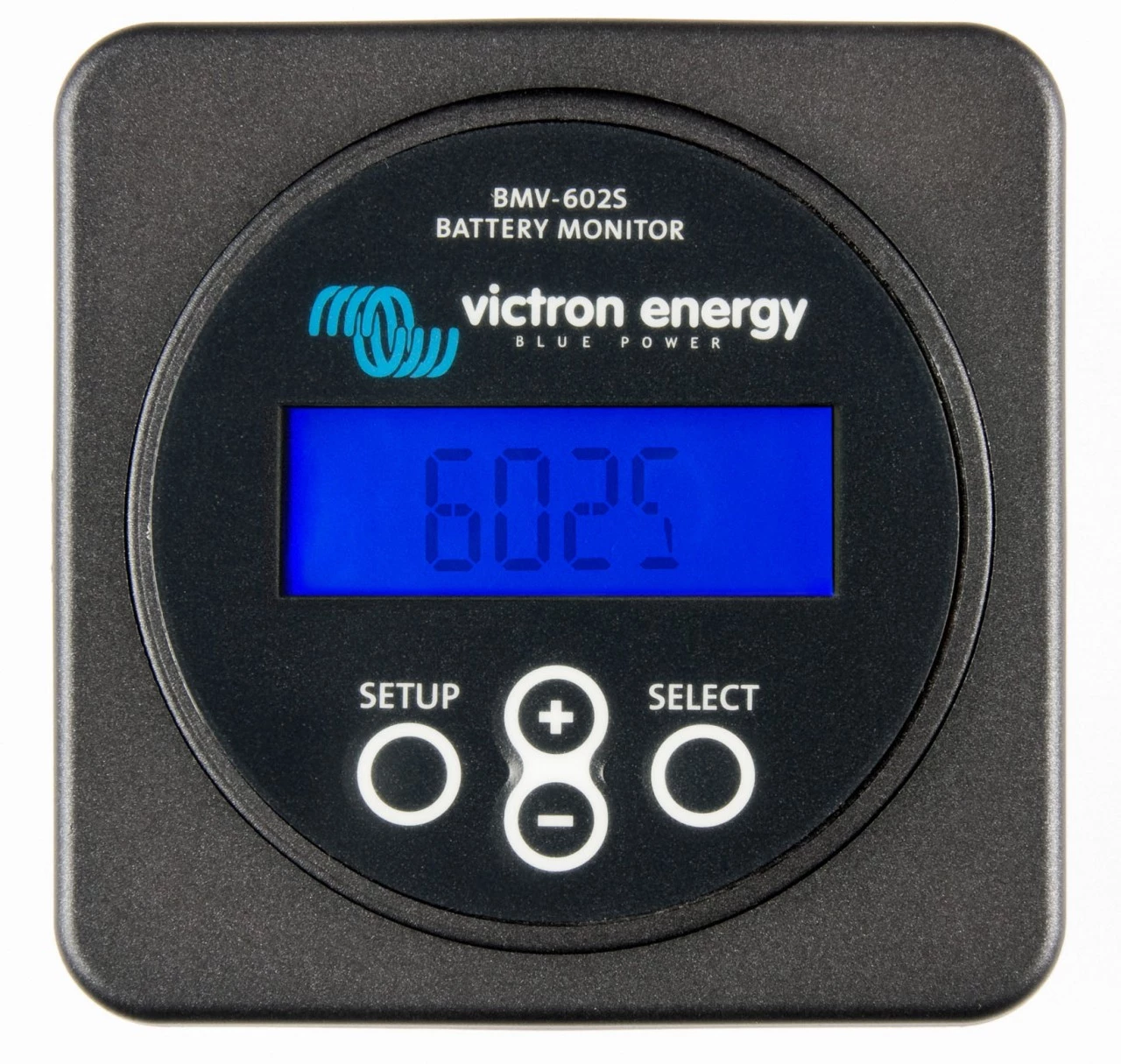

BMV-602S Dual Battery Monitor

BMV 602S Dual Battery Monitor Kit

Programmed with the sort of vital algorithms required to provide absolute precision monitoring, the BMV 602S Dual Battery Monitor Kit is based on a powerful microprocessor to supply exact calculations of ampere-hours consumption and the state of charge of your battery.

With the capacity to measure the voltage of a second battery, the BMV 602 Dual Battery Monitor Kit displays information about the battery voltage (V), Battery charge / Discharge Current (A), Ampere-hours consumed (Ah), the state of charge (%), and also the amount of time left at current states of discharge.

The BMV 602S Dual Battery Monitor Kit also comes supplied with a programmable alarm (generator start relay) as well as a visual and audio alarm that can alert you as to when the battery has discharged or states of over and under voltage.

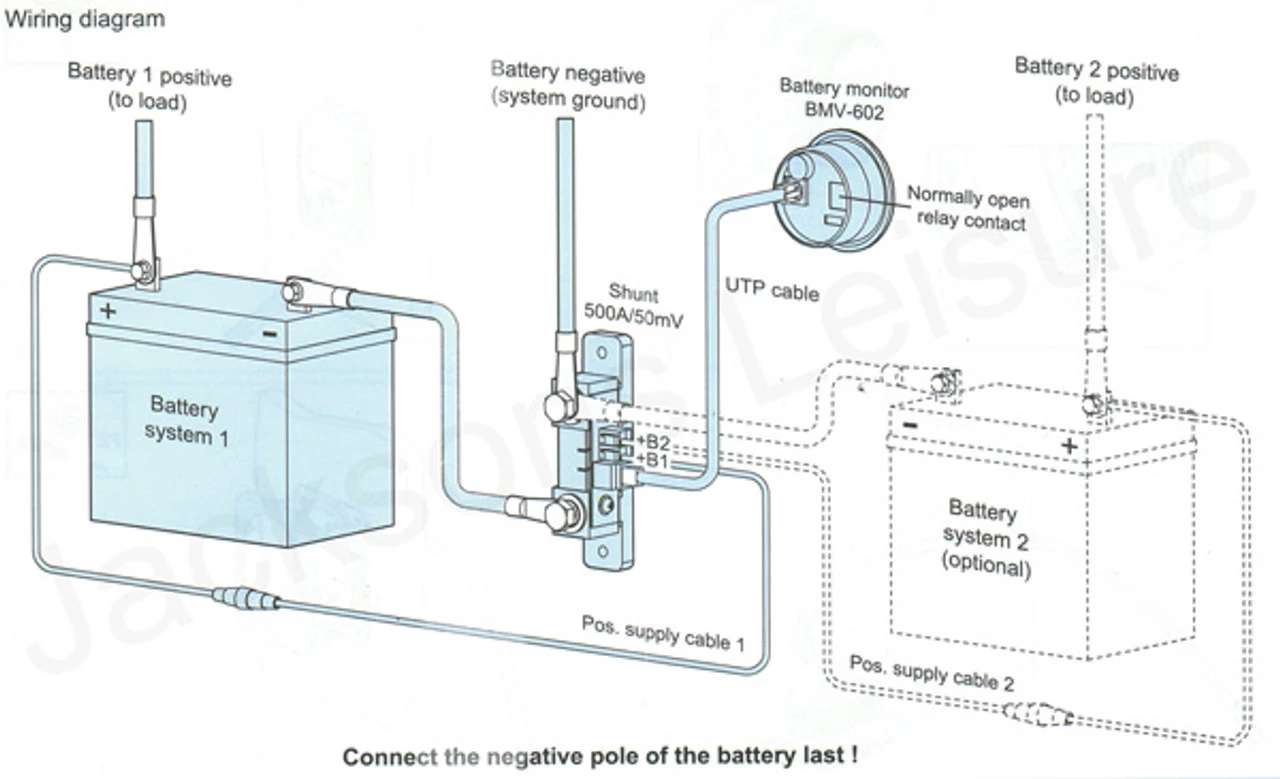

Easy to wire and install, the BMV 602S Dual Battery Monitor Kit comes complete with all the components required for a full and simple set up including a 10 meter RJ 12 UTP cable, shunt, 2 meter battery cable with fuse, as well as a front bezel for a square or round appearance, a ring for rear mounting and screws for front mounting.



Technical Specifications:

Power Supply Voltage:

9.5v – 90v DC

Current Draw:

Battery Capacity:

20Ah – 9999 Ah

Operating Temp:

-20°C to + 50°C

Communication Port:

Yes

Measures voltage of second battery:

Yes
