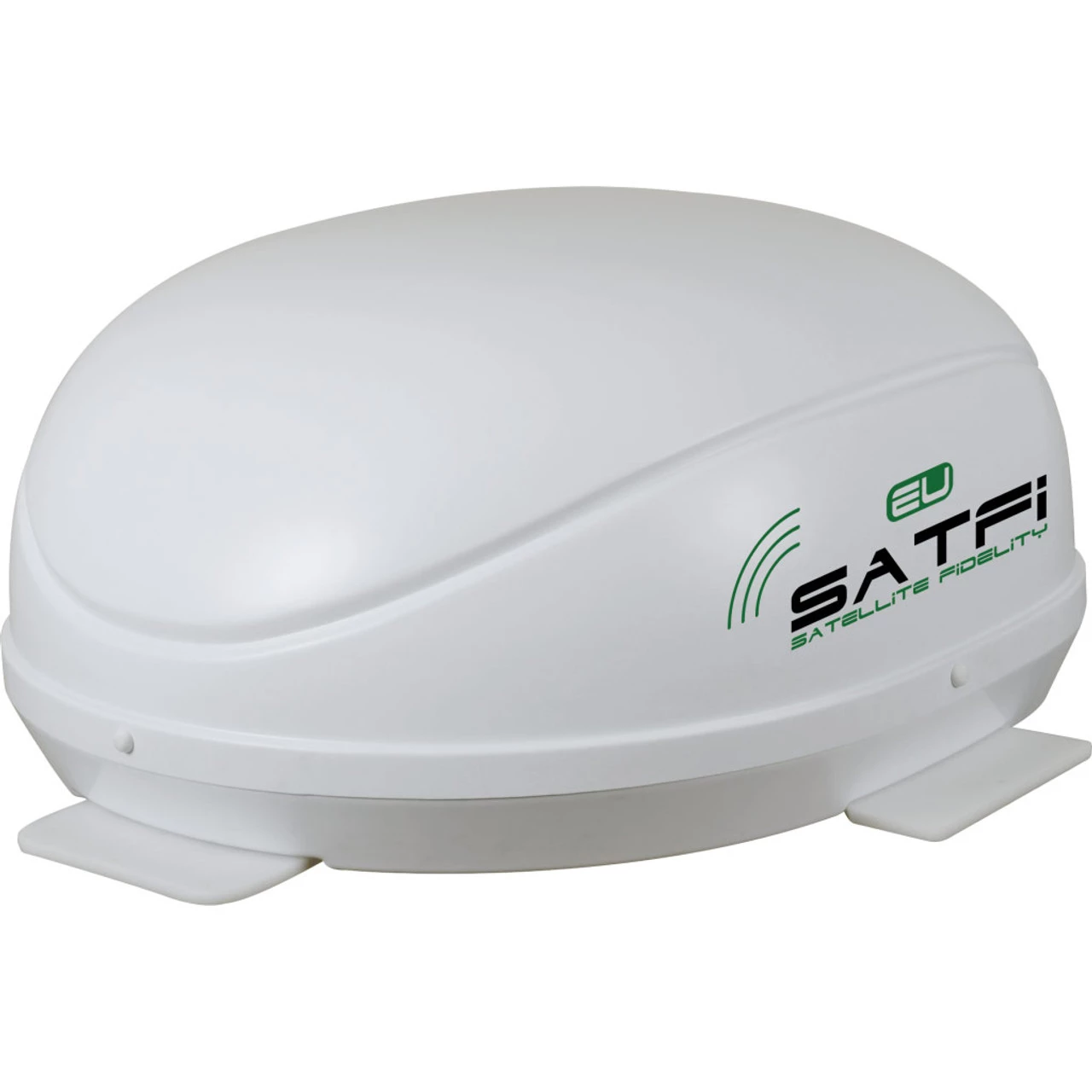

Sat-Fi EU Fully Automatic Satellite Dome w/ Auto Skew – Caravan & Motorhome

Satellite TV coverage across the UK & EU

This high-gain, high coverage satellite antenna system as access to a large number of satellite systems, allowing coverage across much of mainland Europe – as well as the UK. GPS-aided tracking provides auto-skewing to ensure the best possible TV reception.

Compact housing

The SatFi EU is fully housed to both protect the unit and minimise its drag once mounted on your vehicle. It features a wake-on-demand feature to save power, and automatic satellite switching for seamless multi-satellite viewing. It’s ideal for use with motorhomes and caravans.

Sat-Fi EU Features:

• Automatic DiSEqC satellite switching
• Two-year warranty
• High-gain Cassegrain reflector
• GPS-aided LNB auto-skew
• DVB-S2 satellite tracking
• Can be updated via USB
• TriSat satellite library (Astra 2 28E, Astra 1 19E & Hotbird 13E)
• Suitable for motor home, caravan, campervan, horsebox, coach and inland waterways
• Compact, modern design with compact high gain antenna

Sat-Fi EU Brochure:

Technical Specifications:

LNB model:

Universal twin LNB & GPS auto skew

No. external receivers:

2 (Sky & Freesat PVR compatible)

Frequency band:

Ku band

Input frequency:

10.7 GHz – 12.75Ghz

Popularization:

Vertical/Horizontal

Minimum EIRP:

48dBW

Search time:

ca. 1-2 minutes

Elevation range:

15º – 60º

Azimuth direction angle:

680º limited

Motor:

3 axis DC motor

Voltage:

12/24 Volt DC

Current:

3A Peak 0.6A Standby

Dimensions (diameter x height):

83 x 36cm (32.67” x 14.17”)

Weight:

13Kg
