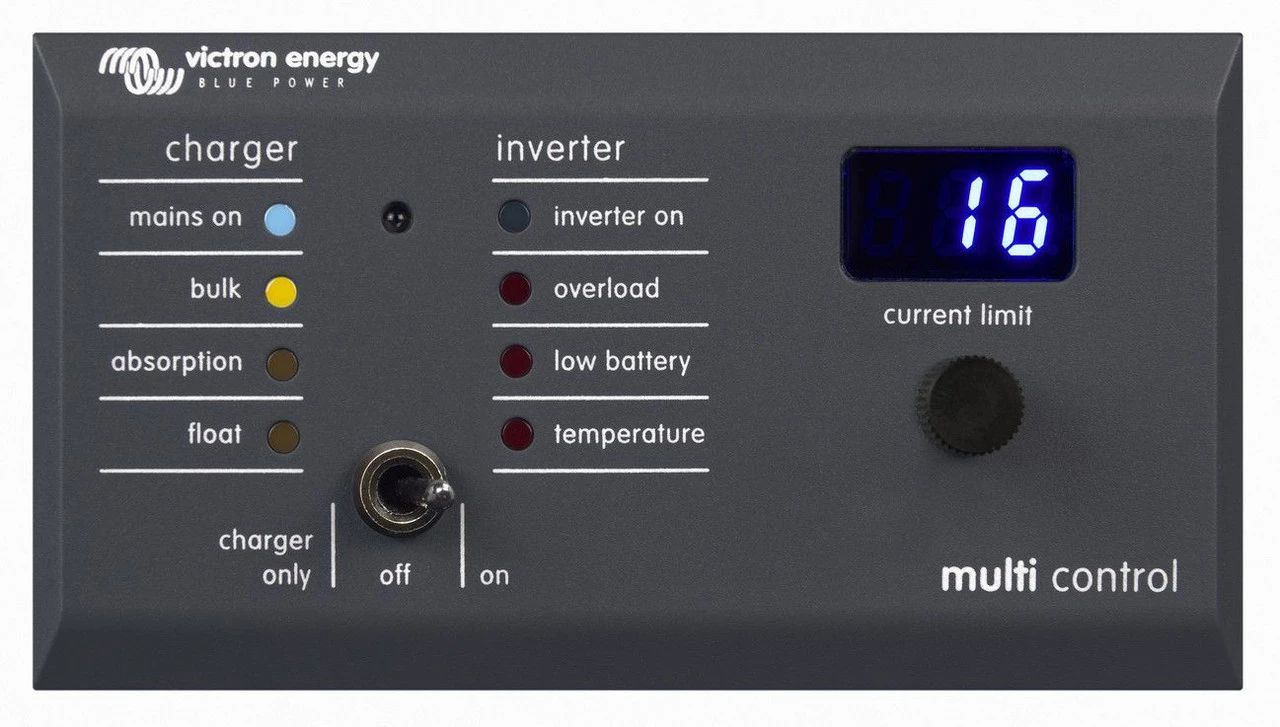

Victron Energy Digital Multi-Control 200A GX Control Panel

Overview

The newly designed Victron Digital Multi Control GX is now manufactured from durable plastic meaning that it is now lighter and has an included function for easy mounting allowing you to mount the panel on its front or side, due to the mounting frame being included you will no longer see the mounting holes that were seen in the previous version.

VE.Bus System – 1 AC Source

By connecting the DMC (Digital Multi Control) to the VE.Bus system the DMC will automatically configure itself to the syetem, meaning nothing needs to be changed in order for the Digital Multi Control to operate unless you would like to limit the maximum operation current, if you need this to be changed then the “Upper shore limit for AC input 1” will need to be changed.

VE.Bus System – 2 AC Sources

There are a number of different ways to run the Digital Multi Control through a VE.Bus system with 2 AC Sources. This can be done with Multi’s if the system is configured with the “VE.Bus System Configurator” tool. You can also run along the range of Quattros by simply connecting the DMC to the VE.Bus system and the Digital Multi Control will configure itself automatically.
