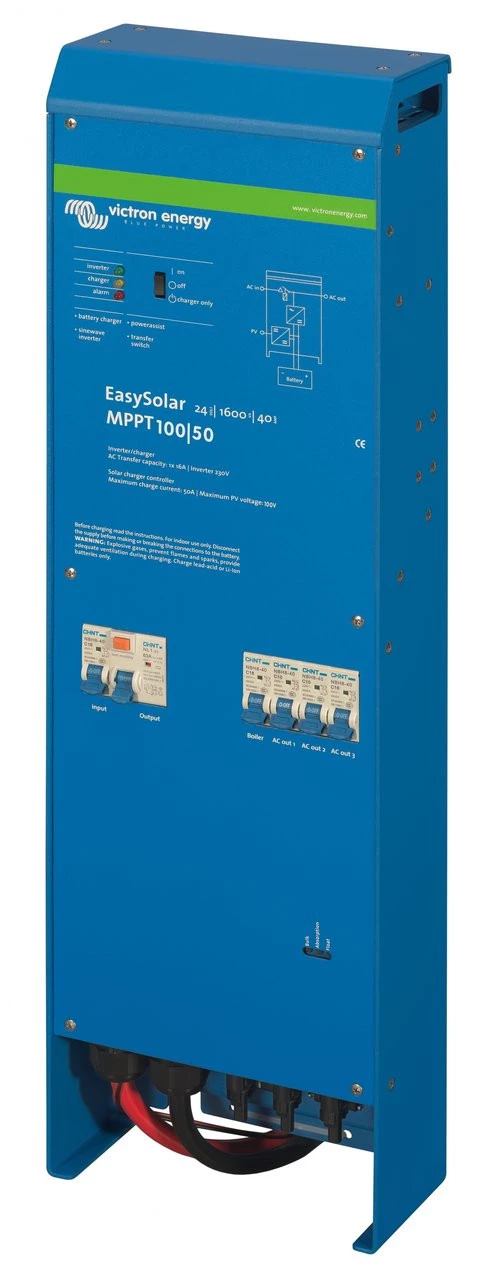

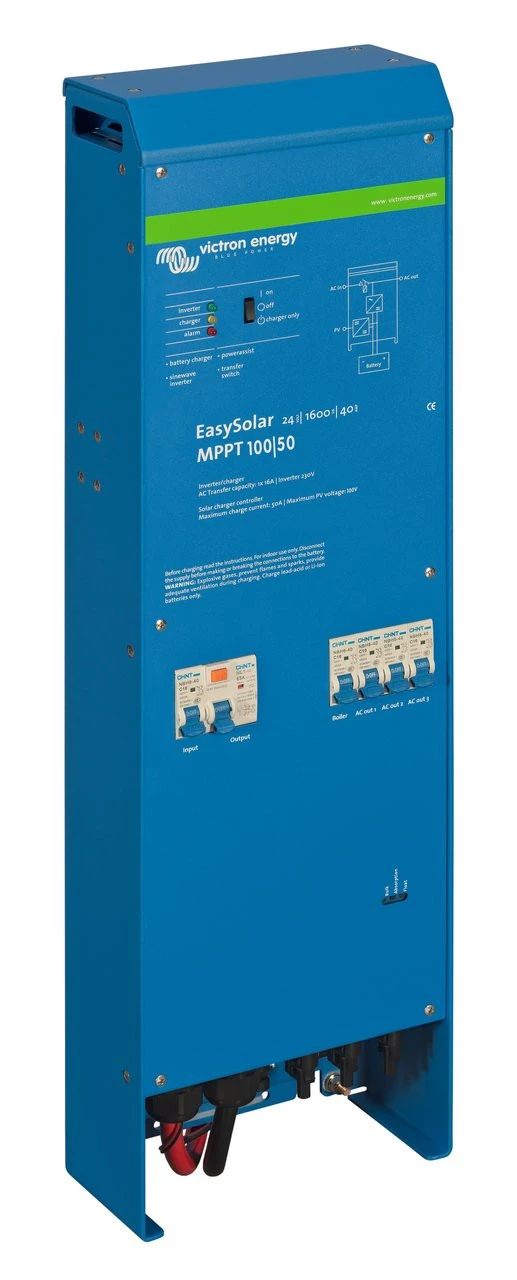

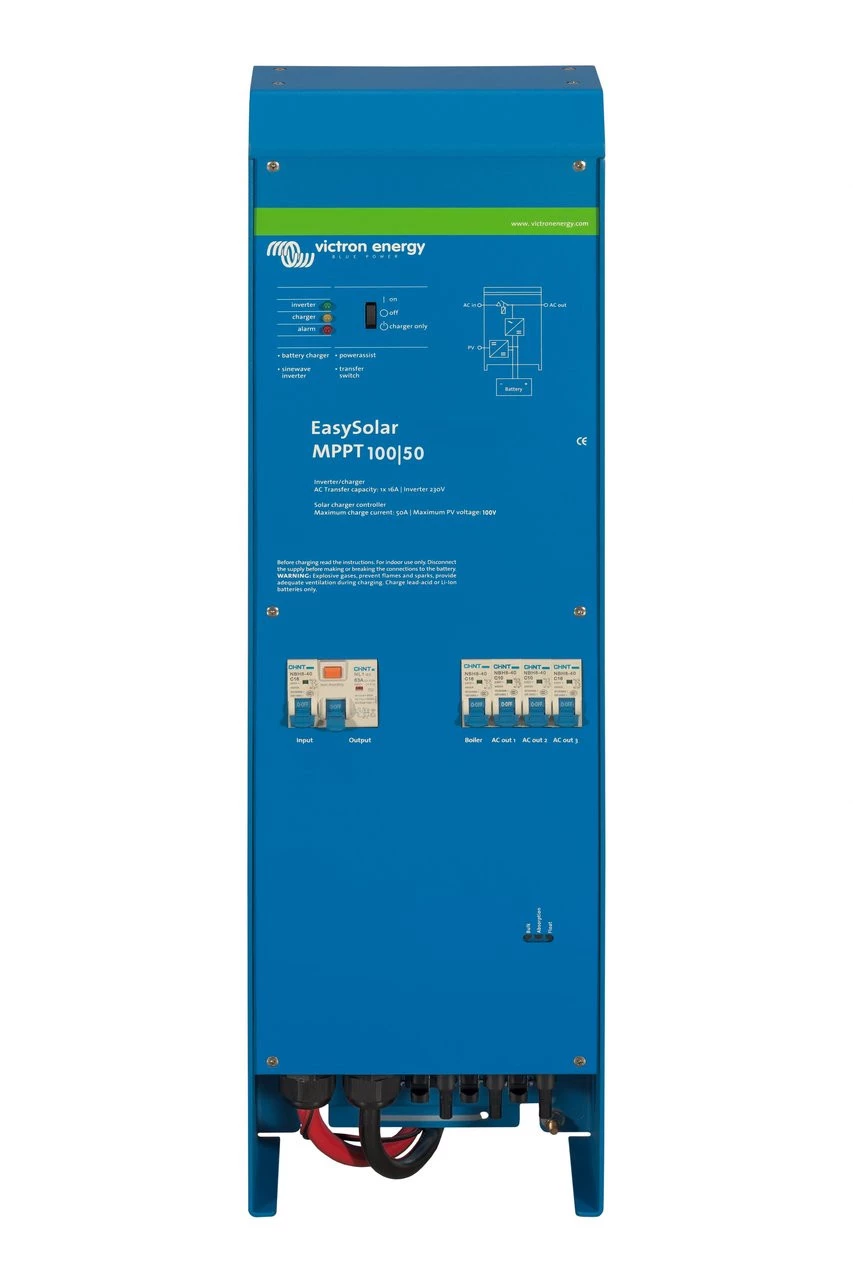

Victron Easy Solar 12v Lesiure Battery Inverter Charger

A Complete Solar Power Solution

Overview

The Victron Energy EasySolar Leisure Battery Inverter Charger combines the capabilities of an MPPT solar charge controller with an inverter and a leisure battery charger while also being easy to install.

AC Distribution

This consists of an RCD and four AC outputs which are then protected by two 10 and 16 Amp circuit breakers. One of the 16 Amp outputs is controlled by the AC input which will only switch on when an AC feed is available.

 Solar Connection

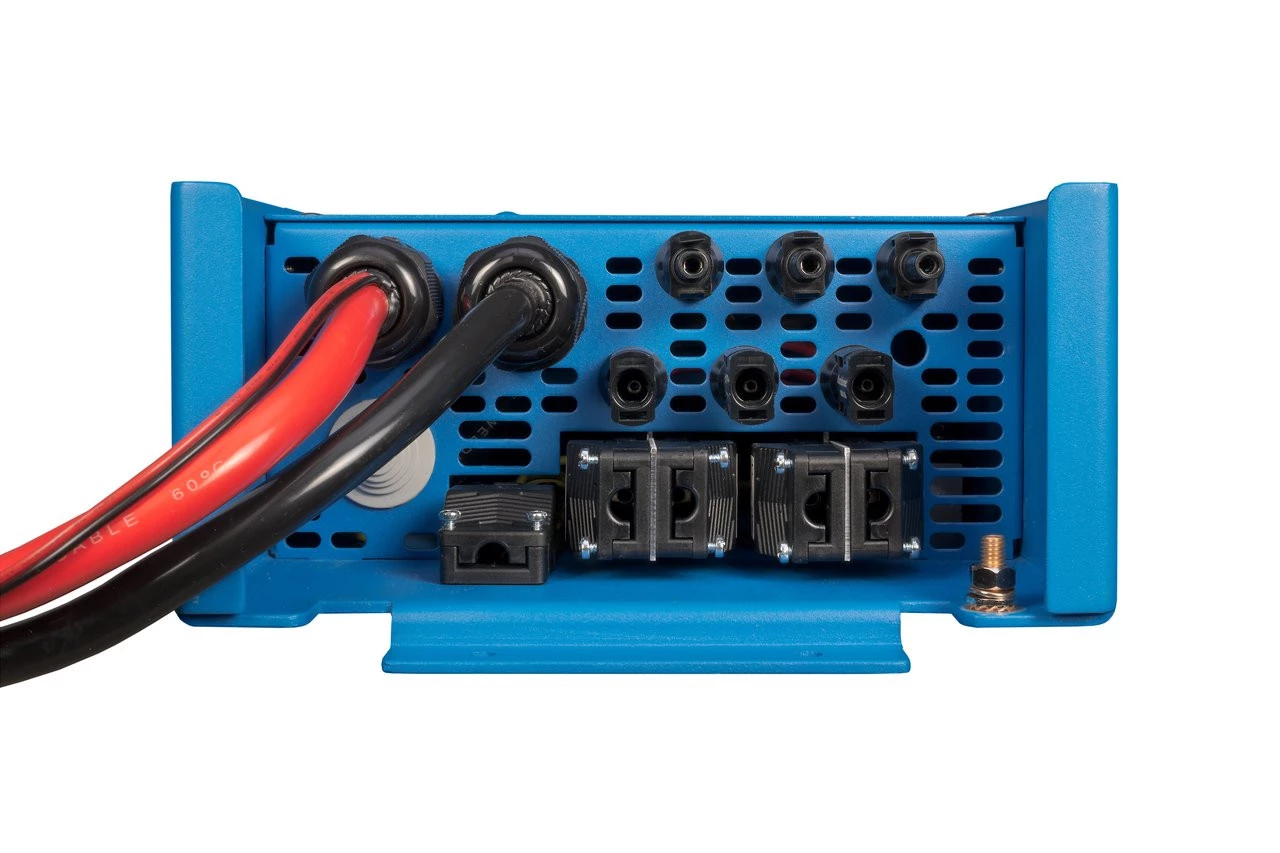

Up to three strings of PV solar panels can be connected to three sets of MC4 PV connectors, allowing the MPPT charge controller and the MultiPlus Compact inverter/charger to share the DC battery cables. Your batteries can then be charged with solar power using a BlueSolar MPPT alternatively this can be done with an AC power (inverter/charger) from the utility grid or a genset.



Technical Specifications:

Transfer Switch (Amp):

16

Input Voltage Range (Voltage):

9.5-17

Output Voltage:

230 VAC

Peak Power (W):

3000

Maximum Efficiency:

92%

Zero Load Power (W):

8

Zero Load Power Search Mode (W):

2
